Solera plana
Delgada y ancha, ideal para fabricación de estructuras livianas, techos y refuerzos.

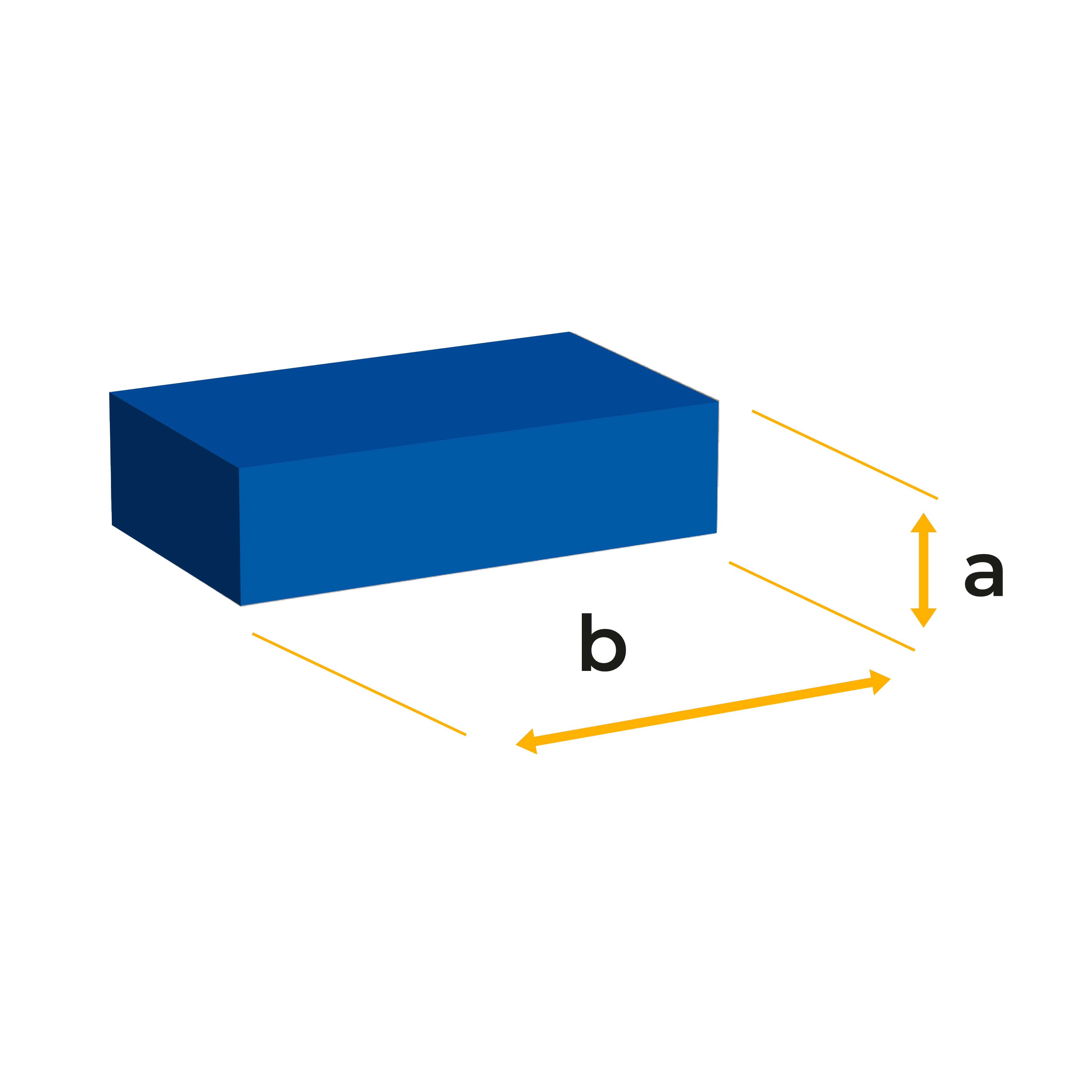

Diagrama de Solera plana
Para mayor detalle del producto puede observar el esquema del mismo.
| Medida Estándar A x B | Peso Teórico | Área | |||||||
|---|---|---|---|---|---|---|---|---|---|
| pulg. | mm | kg/m | kg/pza* | pulg2 | mm2 | ||||
| 1/8” | 1/2” | 3.175 | 12.7 | 0.317 | 1.93 | 0.063 | 40.3 | ||
| 3/4” | 19.1 | 0.476 | 2.90 | 0.094 | 60.6 | ||||
| 1” | 25.4 | 0.633 | 3.86 | 0.125 | 80.6 | ||||
| 1 1/4” | 31.7 | 0.79 | 4.82 | 0.156 | 100.6 | ||||
| 1 1/2” | 38.1 | 0.95 | 5.79 | 0.188 | 121.0 | ||||
| 2” | 50.8 | 1.266 | 7.72 | 0.250 | 161.3 | ||||
| 2 1/2” | 63.5 | 1.583 | 9.65 | 0.313 | 201.6 | ||||
| 3” | 76.2 | 1.899 | 11.59 | 0.375 | 241.9 | ||||
| 3/16” | 1/2” | 4.775 | 12.7 | 0.476 | 2.90 | 0.094 | 60.6 | ||
| 3/4” | 19.1 | 0.716 | 4.37 | 0.141 | 91.2 | ||||
| 1” | 25.4 | 0.952 | 5.81 | 0.188 | 121.3 | ||||
| 1 1/4” | 31.7 | 1.188 | 7.25 | 0.235 | 151.4 | ||||
| 1 1/2” | 38.1 | 1.4228 | 8.71 | 0.282 | 181.9 | ||||
| 2” | 50.8 | 1.904 | 11.61 | 0.376 | 242.6 | ||||
| 2 1/2” | 63.5 | 2.38 | 14.52 | 0.470 | 303.2 | ||||
| 3” | 76.2 | 2.856 | 17.42 | 0.564 | 363.9 | ||||
| 4” | 101.6 | 3.808 | 23.23 | 0.752 | 485.1 | ||||
| 5” | 127.0 | 4.760 | 29.04 | 0.940 | 606.4 | ||||
| 6” | 152.4 | 5.712 | 34.84 | 1.128 | 727.7 | ||||
| 1/4” | 1/2” | 6.350 | 12.7 | 0.633 | 3.86 | 0.125 | 80.6 | ||
| 3/4” | 19.1 | 0.952 | 5.81 | 0.188 | 121.3 | ||||
| 1” | 25.4 | 1.266 | 7.72 | 0.250 | 161.3 | ||||
| 1 1/4” | 31.7 | 1.580 | 9.64 | 0.312 | 201.3 | ||||
| 1 1/2” | 38.1 | 1.899 | 11.58 | 0.375 | 241.9 | ||||
| 2” | 50.8 | 2.532 | 15.45 | 0.500 | 322.6 | ||||
| 2 1/2” | 63.5 | 3.165 | 19.31 | 0.625 | 403.2 | ||||
| 3” | 76.2 | 3.798 | 23.17 | 0.750 | 483.9 | ||||
| 4” | 101.6 | 5.065 | 30.90 | 1.000 | 645.2 | ||||
| 5” | 127 | 6.331 | 38.62 | 1.250 | 806.5 | ||||
| 6” | 152.4 | 7.597 | 46.34 | 1.500 | 967.7 | ||||
| 8” | 203.2 | 10.130 | 61.79 | 2.000 | 1,290.3 | ||||
| 10” | 254 | 12.662 | 77.24 | 2.500 | 1,612.9 | ||||
| 5/16” | 1 1/2” | 7.950 | 38.1 | 2.378 | 14.51 | 0.469 | 302.9 | ||
| 2” | 50.8 | 3.170 | 19.34 | 0.626 | 403.9 | ||||
| 2 1/2” | 63.5 | 3.963 | 24.17 | 0.782 | 504.8 | ||||
| 3” | 76.2 | 4.756 | 29.01 | 0.939 | 605.8 | ||||
| 4” | 101.6 | 6.341 | 38.68 | 1.252 | 807.7 | ||||
| 5” | 127 | 7.926 | 48.35 | 1.565 | 1,009.7 | ||||
| 6” | 152.4 | 9.511 | 58.02 | 1.878 | 1,211.6 | ||||
| 8” | 203.2 | 12.682 | 77.36 | 2.504 | 1,615.4 | ||||
| 10” | 254 | 15.852 | 96.70 | 3.130 | 2,019.3 | ||||
| 3/8” | 1 1/2” | 9.525 | 38.1 | 2.849 | 17.38 | 0.563 | 362.90 | ||
| 2” | 50.8 | 3.798 | 23.17 | 0.750 | 483.87 | ||||
| 2 1/2” | 63.5 | 4.748 | 28.96 | 0.938 | 604.84 | ||||
| 3” | 76.2 | 5.698 | 34.76 | 1.125 | 725.81 | ||||
| 4” | 101.6 | 7.597 | 46.34 | 1.500 | 967.74 | ||||
| 5” | 127 | 9.496 | 57.93 | 1.875 | 1,209.68 | ||||
| 6” | 152.4 | 11.395 | 69.51 | 2.250 | 1,451.61 | ||||
| 1/2” | 1 1/2” | 12.700 | 38.1 | 3.798 | 23.17 | 0.750 | 483.87 | ||
| 2” | 50.8 | 5.065 | 30.90 | 1.000 | 645.16 | ||||
| 2 1/2” | 63.5 | 6.331 | 38.62 | 1.250 | 806.45 | ||||
| 3” | 76.2 | 7.597 | 46.34 | 1.500 | 967.74 | ||||
| 4” | 101.6 | 10.129 | 61.79 | 2.000 | 1,290.32 | ||||
| 5” | 127 | 12.661 | 77.23 | 2.500 | 1,612.90 | ||||
| 6” | 152.4 | 15.194 | 92.68 | 3.000 | 1,935.46 | ||||
| 8” | 203.2 | 20.258 | 123.57 | 4.000 | 2,580.64 | ||||
| 10” | 254.0 | 25.322 | 154.46 | 5.000 | 3,225.80 | ||||
| 5/8” | 1 1/2” | 15.875 | 38.1 | 4.748 | 28.96 | 0.938 | 604.84 | ||
| 2” | 50.8 | 6.331 | 38.62 | 1.250 | 806.45 | ||||
| 2 1/2” | 63.5 | 7.913 | 48.27 | 1.563 | 1,008.06 | ||||
| 3” | 76.2 | 9.496 | 57.93 | 1.875 | 1,209.68 | ||||
| 4” | 101.6 | 12.661 | 77.23 | 2.500 | 1,612.90 | ||||
| 5” | 127 | 15.827 | 96.54 | 3.125 | 2,016.13 | ||||
| 6” | 152.4 | 18.992 | 115.85 | 3.750 | 2,419.35 | ||||
| 8” | 203.2 | 25.322 | 154.46 | 5.000 | 3,225.80 | ||||
| 10” | 254.0 | 31.654 | 193.09 | 6.250 | 4,032.25 | ||||
| 3/4” | 1 1/2” | 19.050 | 38.1 | 5.698 | 34.76 | 1.125 | 725.81 | ||
| 2” | 50.8 | 7.597 | 46.34 | 1.500 | 967.74 | ||||
| 2 1/2” | 63.5 | 9.496 | 57.93 | 1.875 | 1,209.68 | ||||
| 3” | 76.2 | 11.395 | 69.51 | 2.250 | 1,451.61 | ||||
| 4” | 101.6 | 15.194 | 92.68 | 3.000 | 1,935.48 | ||||
| 5” | 127 | 18.992 | 115.85 | 3.750 | 2,419.35 | ||||
| 6” | 152.4 | 22.790 | 139.02 | 4.500 | 2,903.22 | ||||
| 8” | 203.2 | 30.388 | 185.37 | 6.000 | 3,870.96 | ||||
| 10” | 254.0 | 37.984 | 231.70 | 7.500 | 4,838.70 | ||||
| 1” | 2” | 25.400 | 50.8 | 10.129 | 61.79 | 2.000 | 1,290.32 | ||
| 3” | 76.2 | 15.194 | 92.68 | 3.000 | 1,935.48 | ||||
| 4” | 101.6 | 20.258 | 123.57 | 4.000 | 2,580.64 | ||||
| 5” | 127 | 25.323 | 154.47 | 5.000 | 3,225.80 | ||||
| 6” | 152.4 | 30.387 | 185.36 | 6.000 | 3,870.96 | ||||
| 8” | 203.2 | 40.516 | 247.15 | 8.000 | 5,161.28 | ||||
| 10” | 254.0 | 50.646 | 308.94 | 10.000 | 6,451.60 | ||||
| *El peso por pieza corresponde a un tramo de 6.10 mts. de longitud. | |||||||||
Algunos de nuestros productos son sobre pedido especial, verifica con el ejecutivo de ventas.
Los pesos en la tabla son teóricos y pueden variar + - un 5%.
